UY 磁芯

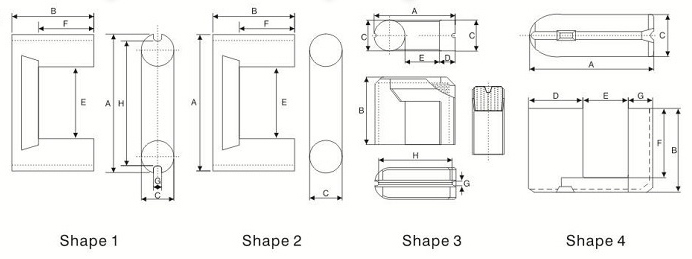

型号尺寸Dimension/单位mmType图例ABCDEFGH备注ShapeUY7.1235.05±0.3518.7±0.27.1±0.1220.6min11.56±0.2KUY10132.00±0.522.00±0.211.00±0.1513±0.514.4±0.129.3±0.5KUY11.7141.10±0.726.1±0.111.719.3±0.616.8+0/-0.33.2±0.1534.7minKUY13-35142.2±0.135±0.213.5±0.316min23.6±0.34.0±
在线询价
| 型号 | 尺寸 Dimension/单位mm | |||||||||
| Type | 图例 | A | B | C | D | E | F | G | H | 备注 |
| Shape | ||||||||||
| UY7.1 | 2 | 35.05±0.35 | 18.7±0.2 | 7.1±0.12 | 20.6 min | 11.56±0.2 | K | |||
| UY10 | 1 | 32.00±0.5 | 22.00±0.2 | 11.00±0.15 | 13±0.5 | 14.4±0.1 | 29.3±0.5 | K | ||
| UY11.7 | 1 | 41.10±0.7 | 26.1±0.1 | 11.7 | 19.3±0.6 | 16.8+0/-0.3 | 3.2±0.15 | 34.7min | K | |
| UY13-35 | 1 | 42.2±0.1 | 35±0.2 | 13.5±0.3 | 16 min | 23.6±0.3 | 4.0±1 | K | ||
| UY16-42 | 3 | 47.1±1 | 41.8±0.2 | 15.7±0.35 | 12.5±0.25 | 18.8 min | 29.0±0.3 | 3.5±1 | K | |
| UY16-44 | 3 | 47.1±1 | 43.9±0.2 | 15.7±0.35 | 18.8 min | 31.1±0.3 | 3.5±1 | K | ||
| UY18-35 | 4 | 41.0±0.5 | 34.6±0.3 | 17.6±0.2 | 18.0±0.3 | 15+0.8/-0.5 | 28.6±0.3 | 8.0±1 | K | |
| UY18-14 | 4 | 41.0±0.5 | 14±0.3 | 17.6±0.2 | 18.0±0.3 | 15+0.8/-0.5 | 8.0±0.3 | 8.0±1 | K | |
| 型号Type | 有效参数 | AL值AL(nH/N²) | ||||||||
| C1(mm-1) | Le(mm) | Ae(m㎡) | Ve(mm³) | GP4 | ||||||
| U12 | 1.28 | 142.4 | 111 | 17311 | ||||||
| U12.5 | 1.2 | 147 | 122 | 19461 | ||||||
| U13 | 1.1 | 151.3 | 128 | 19300 | ||||||
| U13.5A | 139.9 | |||||||||
