ATQ 型磁芯
型号Type尺寸Dimension/单位mm重量g备注ABC1C2C3D1D2EFGTQ2121.0±0.58.90±0.213.0±0.510.6±0.58.2±0.2517.2±0.514.4±0.58.20±0.256.5±0.1515.0GATQ23.723.7±0.414.6±0.217.8±0.314.7±0.49.6±0.2521.0±0.413.4MI
在线询价  | ||||||||||||

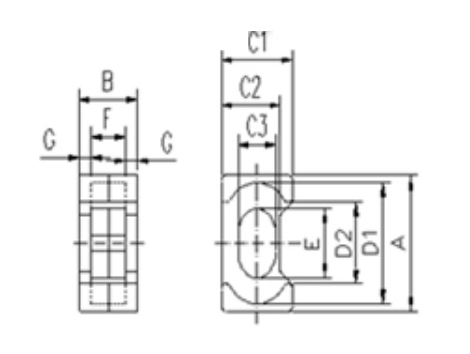

| 型号 Type | 尺寸 Dimension/单位mm | 重量 g | 备注 | |||||||||
| A | B | C1 | C2 | C3 | D1 | D2 | E | F | G | |||
| TQ21 | 21.0±0.5 | 8.90±0.2 | 13.0±0.5 | 10.6±0.5 | 8.2±0.25 | 17.2±0.5 | 14.4±0.5 | 8.20±0.25 | 6.5±0.15 | 15.0 | G | |
| ATQ23.7 | 23.7±0.4 | 14.6±0.2 | 17.8±0.3 | 14.7±0.4 | 9.6±0.25 | 21.0±0.4 | 13.4 MIN | 12.2±0.25 | 8.6±0.3 | 3.0±0.15 | G | |
| ATQ27 | 27.0±0.5 | 7.25±0.125 | 22.5±0.5 | 17.3±0.4 | 14.2±0.25 | 23.2±0.5 | 15.0±0.5 | 11.2±0.25 | 4.35±0.15 | 26.5 | G | |
| 型号 | 有效参数 | AL与AL（nH/N2） | ||||||||||
| C1(mm-1) | Le(mm) | Ae(mm2) | Ve(mm3) | GP4 | GP47 | GP95 | ||||||
| ATQ21 | 44.6 | 60.2 | 2684.9 | 3200±25% | ||||||||
| ATQ23.7 | 0.371 | 38.2 | 103 | 3934.6 | 5800±25% | 7200±25% | ||||||
| ATQ27 | 43 | 131.5 | 5654.5 | 6900±25% | ||||||||
