DS(POT) 罐型磁芯
型号Type尺寸Dimension/单位mm备注ABC(Ref.)DEF重量gDS301930.0±0.59.40±0.2020.3±0.3025.4±0.413.3±0.256.60±0.2033.9DS331933.2±0.59.40±0.2023.7±0.3026.6±0.413.5±0.206.50±0.2045.1DS402039.8±0.610.20±0.2028.3±0.3533.2±0.616.0±0.256.60±0.268.6DS402539.8±0.6&n
在线询价  | |||||||

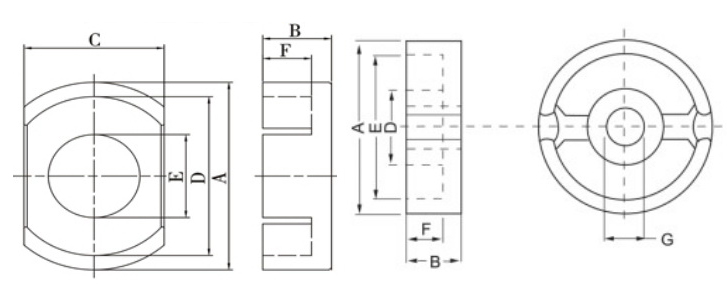

| 型号 Type | 尺寸 Dimension/单位mm | 备注 | |||||
| A | B | C (Ref.) | D | E | F | 重量g | |
| DS3019 | 30.0±0.5 | 9.40±0.20 | 20.3±0.30 | 25.4±0.4 | 13.3±0.25 | 6.60±0.20 | 33.9 |
| DS3319 | 33.2±0.5 | 9.40±0.20 | 23.7±0.30 | 26.6±0.4 | 13.5±0.20 | 6.50±0.20 | 45.1 |
| DS4020 | 39.8±0.6 | 10.20±0.20 | 28.3±0.35 | 33.2±0.6 | 16.0±0.25 | 6.60±0.2 | 68.6 |
| DS4025 | 39.8±0.6 | 12.65±0.25 | 28.3±0.35 | 33.2±0.6 | 16.0±0.25 | 9.05±0.25 | 78 |
| G9 | 8.7±0.2 | 3.4±0.2 | 3.8 max | 7.3 min | 2.5±0.2 | 1.75±0.15 | 1.2 |
| G14 | 13.6±0.3 | 4.20±0.20 | 6.0 max | 11.2 min | 3.00±0.20 | 3.1±0.15 | 3.9 |
| G26 | 25.5±0.5 | 8.05±0.25 | 11.0±0.3 | 21.2 min | 5.65±0.25 | 5.9±0.35 | 21.2 |
| G35 | 35.0±0.6 | 11.80±0.20 | 15.7±0.2 | 29.5 min | 8.10±0.20 | 5.3±0.15 | 64 |
| Type 型号 | 有效参数 | 重量 g | AL值AL(nH/N²) | ||||
| C1(mm-1) | Le(mm) | Ae(mm2) | Ve(mm3) | GP4 | GS3 | ||
| DS3019 | 0.395 | 46.2 | 117 | 5405 | 33.9 | 4600±25% | |
| DS3319 | 0.35 | 51.44 | 147 | 7576 | 45.1 | 6800±25% | |
| DS4020 | 0.28 | 57.3 | 200 | 11746 | 68.6 | 6800±25% | |
| DS4025 | 0.32 | 67.3 | 205 | 13800 | 78 | 6800±25% | |
| G9 | 1.33 | 15.01 | 11.23 | 168.6 | 1.2 | ||
| G14 | 0.89 | 19.89 | 22.27 | 443.17 | 3.9 | ||
| G26 | 0.4 | 37.53 | 86.3 | 3238.5 | 21.2 | 4500±30% | 6000±25% |
| G35 | 0.28 | 54.35 | 193.5 | 13885 | 64 | 8000±25% | 9000±25% |
