EP 型磁芯
型号Type尺寸Dimension/单位mm备注ABCDEFEP79.2±0.23.75±0.156.35±0.153.3±0.17.4±0.22.65±0.151.7EP7J7.3+0/-0.43.7±0.16.5+0/-0.42.5±0.15.4+0.4/-02.85±0.11EP10D11.8±0.35.1±0.207.7±0.203.3±0.29.7±0.23.8±0.23.8EP1312.5±0.36.50±0.308.80±0.204.4±0.210.0±
在线询价

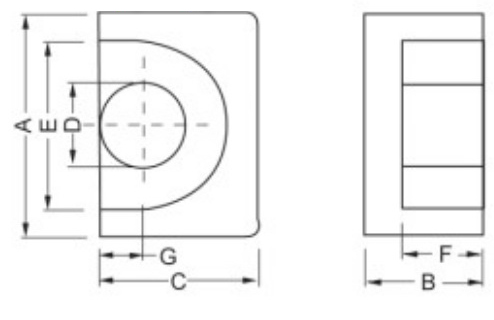

| 型号 Type | 尺寸 Dimension/单位mm | 备注 | ||||||||
| A | B | C | D | E | F | |||||
| EP7 | 9.2±0.2 | 3.75±0.15 | 6.35±0.15 | 3.3±0.1 | 7.4±0.2 | 2.65±0.15 | 1.7 | |||
| EP7J | 7.3+0/-0.4 | 3.7±0.1 | 6.5+0/-0.4 | 2.5±0.1 | 5.4+0.4/-0 | 2.85±0.1 | 1 | |||
| EP10D | 11.8±0.3 | 5.1±0.20 | 7.7±0.20 | 3.3±0.2 | 9.7±0.2 | 3.8±0.2 | 3.8 | |||
| EP13 | 12.5±0.3 | 6.50±0.30 | 8.80±0.20 | 4.4±0.2 | 10.0±0.3 | 4.50+0.4/-0 | 5.5 | |||
| EP17 | 18.0±0.4 | 8.4±0.2 | 11.0±0.25 | 5.68±0.15 | 12.0±0.4 | 5.65±0.2 | 12 | |||
| EP17D | 18.3±0.3 | 8.7±0.2 | 11.1±0.25 | 5.68±0.15 | 12.0 min | 5.85±0.2 | 12.5 | |||
| 型号Type | 有效参数 | AL值 AL(nH/N²) | ||||||||
| C1(mm-1) | Le(mm) | Ae(mm2) | Ve(mm3) | GS3 | GP4 | GH5 | GH7 | GH10 | GH12 | |
| EP7 | 1.46 | 15.56 | 10.61 | 165.29 | 1200±30% | |||||
| EP7J | 15.2 | 9.81 | 149.3 | 2400±30% | ||||||
| EP10D | 18.7 | 11.03 | 206.32 | 4500±25% | ||||||
| EP13 | 1.24 | 24.2 | 19.5 | 472 | 1600±25% | 1400±25% | 4500±25% | 5800±25% | 7200±25% | |
| EP17 | 0.84 | 28.5 | 33.9 | 966 | 2400±25% | |||||
| EP17D | 0.84 | 28.5 | 33.9 | 966 | 2400±25% | |||||
