RM 磁芯
型号Type尺寸Dimension/单位mm备注ABC(Ref.)DEFGRM6(H)17.60±0.306.2±0.158.00±0.206.20±0.1012.65±0.254.10±0.1514.40±0.30GRM7(H)20.1±0.406.75±0.157.10±0.1515.2min4.5±0.2016.85±0.45GRM8(CH)22.75±0.458.2±0.1510.80±0.208.40±0.1517.30±0.305.50±
在线询价

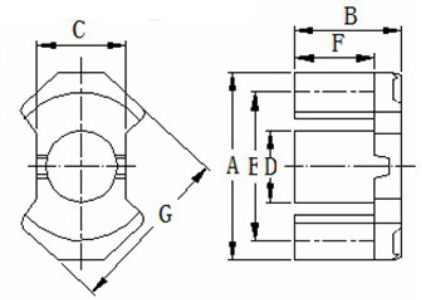

| 型号 Type | 尺寸 Dimension/单位mm | 备注 | ||||||
| A | B | C (Ref.) | D | E | F | G | ||
| RM6 (H) | 17.60±0.30 | 6.2±0.15 | 8.00±0.20 | 6.20±0.10 | 12.65±0.25 | 4.10±0.15 | 14.40±0.30 | G |
| RM7 (H) | 20.1±0.40 | 6.75±0.15 | 7.10±0.15 | 15.2min | 4.5±0.20 | 16.85±0.45 | G | |
| RM8 (C H) | 22.75±0.45 | 8.2±0.15 | 10.80±0.20 | 8.40±0.15 | 17.30±0.30 | 5.50±0.15 | 19.30±0.40 | G |
| RM10 (H) | 27.85±0.65 | 9.3±0.15 | 13.25±0.25 | 10.70±0.20 | 21.65±0.45 | 6.35±0.15 | 24.15±0.55 | G |
| RM12 | 36.90±0.70 | 12.3±0.30 | 15.90±0.30 | 12.60±0.30 | 25.50±0.60 | 8.50±0.30 | 29.20±0.70 | G |
| RM14 | 41.60±0.60 | 15.1±0.15 | 18.70±0.30 | 14.75±0.25 | 29.50±0.50 | 10.80±0.15 | 34.20±0.50 | G |
| Type 型号 | 有效参数 | 重量 g | AL值 AL(nH/N²) | |||||
| C1(mm-1) | Le(mm) | Ae(m㎡) | Ve(mm³) | GP4 | ||||
| RM6 | 0.78 | 28.6 | 36.6 | 1050 | 6.1 | 2450±25% | ||
| RM7 | 0.74 | 32.8 | 43.6 | 1430 | 8 | 2500±25% | ||
| RM8 | 0.59 | 38 | 64 | 2400 | 13.8 | 2950±25% | ||
| RM10 | 0.45 | 44 | 98 | 4310 | 24 | 3630±25% | ||
| RM12 | 0.41 | 56 | 140 | 7960 | 49.6 | 5200±25% | ||
| RM14 | 0.4 | 75.38 | 178 | 12600 | 80 | 6000±25% | ||
