I方形磁芯
型号Type尺寸Dimension/单位mm重量g备注ABCI13×6.3×3.013.0±0.46.3±0.303.1±0.201.3KI15.0×5.0×4.015.0±0.35.0±0.204.0±0.201.5GI15.5×6.4×5.115.5±0.46.4±0.305.1±0.2031.5KI16×4×316±0.44±0.303±0.2028KI17.0×5.0×4.817.0±0.35.0±0.204.8±0.102GI35.0×11.0×5.5
在线询价

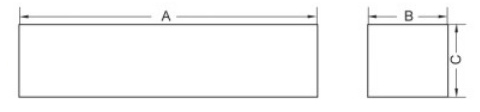

| 型号 Type | 尺寸 Dimension/单位mm | 重量 g | 备注 | ||
| A | B | C | |||
| I13×6.3×3.0 | 13.0±0.4 | 6.3±0.30 | 3.1±0.20 | 1.3 | K |
| I15.0×5.0×4.0 | 15.0±0.3 | 5.0±0.20 | 4.0±0.20 | 1.5 | G |
| I15.5×6.4×5.1 | 15.5±0.4 | 6.4±0.30 | 5.1±0.20 | 31.5 | K |
| I16×4×3 | 16±0.4 | 4±0.30 | 3±0.20 | 28 | K |
| I17.0×5.0×4.8 | 17.0±0.3 | 5.0±0.20 | 4.8±0.10 | 2 | G |
| I35.0×11.0×5.5 (H) | 35.0±0.5 | 11.0±0.50 | 5.5±0.20 | 10.5 | G |
| I40×10×5 | 39.8±0.4 | 10.0±0.25 | 5.0±0.25 | 10 | G |
| I40×25×5 | 40±0.4 | 25±0.30 | 5±0.20 | 26 | K |
| I45.0×15.0×5.0 | 45.0±0.8 | 15.0±0.50 | 5.0±0.50 | 16.6 | G |
| I54×19×7 | 54±0.4 | 19±0.30 | 7±0.20 | 15 | K |
| I58.5×26.0×8.2 | 58.5±0.5 | 26.0±0.20 | 8.2±0.20 | 60 | G |
| I60.0×15.0×4.9 | 60.0±0.4 | 15.0±0.30 | 4.9±0.20 | 21.6 | G |
| I60.0×15.0×5.0 | 60.0±1.0 | 15.0±0.30 | 5.0±0.20 | 22 | G K |
| I60×15×15 | 60±0.4 | 15±0.30 | 15±0.20 | 65.2 | K |
| I64.5×10×5 | 64.5±0.4 | 10±0.30 | 5±0.20 | 21.5 | K |
| I70×15×5 | 70±0.4 | 15±0.30 | 5±0.20 | 33 | K |
| I76×15×5 | 76±0.4 | 15±0.30 | 5±0.20 | 0.95 | K |
| I77.0×56.0×10.0 | 77.0±1.5 | 56.0±1.00 | 10.0±0.50 | 207 | G |
| I85×15×5 | 85±0.4 | 15±0.30 | 5±0.20 | 2.5 | K |
| I90×15×5 | 90±0.4 | 15±0.30 | 5±0.20 | 1.15 | K |
| I91.0×56.0×10.0 | 91.0 ±1.8 | 56.0±1.00 | 10.0±0.50 | 245 | G |
| I101.6×50.8×25.4 | 101.6±2.0 | 50.8±0.64 | 25.4±0.64 | 650 | G |
