UF、UI型磁芯
型号Type尺寸Dimension/单位mm重量g备注ABCDEFUU4.64.2±0.204.2±0.203.25±0.201.4±0.201.35±0.252.7±0.150.4GUF9.89.8±0.307.2±0.252.80±0.22.8±0.204.1min4.4±0.251.5GUF10.510.5±0.357.9±0.255.00±0.32.6±0.255.2min5.4±0.302.8GUF152315.0±0.5011.7±0.306.50±0.35.1±
在线询价

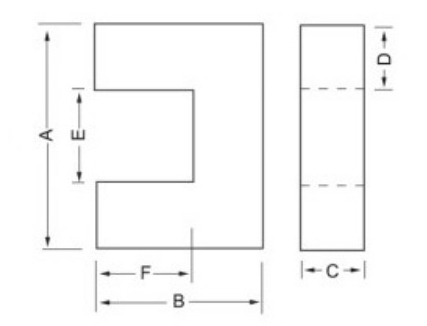

| 型号 Type | 尺寸 Dimension/单位mm | 重量 g | 备注 | ||||||
| A | B | C | D | E | F | ||||
| UU4.6 | 4.2±0.20 | 4.2±0.20 | 3.25±0.20 | 1.4±0.20 | 1.35±0.25 | 2.7±0.15 | 0.4 | G | |
| UF9.8 | 9.8±0.30 | 7.2±0.25 | 2.80±0.2 | 2.8±0.20 | 4.1min | 4.4±0.25 | 1.5 | G | |
| UF10.5 | 10.5±0.35 | 7.9±0.25 | 5.00±0.3 | 2.6±0.25 | 5.2min | 5.4±0.30 | 2.8 | G | |
| UF1523 | 15.0±0.50 | 11.7±0.30 | 6.50±0.3 | 5.1±0.30 | 5.0min | 5.9±0.30 | 9.1 | G | |
| UF15.7 | 15.9±0.30 | 10.0±0.20 | 5.90±0.2 | 4.5±0.20 | 6.8min | 6.1±0.20 | 6.8 | G | |
| UF1620 | 16.0±0.30 | 10.5±0.20 | 5.90±0.2 | 4.5±0.20 | 6.8min | 6.5±0.35 | 7.5 | G | |
| UU1654 | 16.2±0.30 | 27.0±0.30 | 10.0±0.2 | 9.0±0.30 | 7.2±0.30 | 22.5±0.2 | 29.6 | G | |
| UF1936 | 19.7±0.40 | 18.0±0.50 | 6.00±0.3 | 6.0±0.20 | 7.4min | 12.0+0.40 | 15.2 | G | |
| UF20.3 | 20.3±0.30 | 13.6±0.20 | 10.9±0.2 | 4.9±0.20 | 10.4min | 8.7±0.30 | 19.6 | G | |
| UF2132 | 21.4±0.50 | 15.9±0.30 | 7.30±0.3 | 7.3±0.30 | 6.0min | 8.5±0.20 | 21 | G | |
| UF2532 | 25.4±0.50 | 16.0±0.30 | 6.35±0.3 | 6.35±0.3 | 12.4min | 9.65±0.2 | 18 | G | |
| UU2758 | 27.2±0.30 | 29.0±0.30 | 10.0±0.3 | 6.5±0.20 | 14.2±0.3 | 22.5±0.3 | 48.6 | G | |
| UF3143 | 30.5±0.60 | 21.8±0.40 | 6.70±0.3 | 11.8±0.40 | 6.9±0.4 | 10.0±0.40 | 40.4 | G | |
| UU3138 | 31.0±0.50 | 19.1±0.20 | 13.85±0.2 | 6.0±0.30 | 19.0±0.5 | 13.1±0.30 | 46.2 | G | |
| UF3327 | 33.0±0.50 | 13.5±0.20 | 7.20±0.2 | 7.2±0.20 | 18.0min | 6.15±0.20 | 24.5 | G | |
| UU3935 | 39.0±0.50 | 17.5±0.30 | 11.50±3 | 7.0±0.20 | 25.0±0.4 | 10.50±0.30 | 53 | G | |
| UU46 | 46.5±0.5 | 39.6±0.25 | 28.2±0.3 | 14.15±0.25 | 18±0.5 | 25.7±0.25 | 389 | G | |
| UU100 | 100±1.5 | 45.4±0.35 | 30±0.35 | 39.4±0.8 | 30.5±0.35 | 15±0.25 | 1022 | G | |
| 型号 | 有效参数 | AL值 AL（nH/N2） | |||||||
| Type | Effective parameter | ||||||||
| C1 | Le | Ae | Ve | GP4 | GH5 | GH7 | GH10 | GH12 | |
| (mm-1) | (mm) | (mm2) | (mm3) | ||||||
| UU4.6 | 3.79 | 18.0 | 4.75 | 85.7 | 900±25% | ||||
| UF9.8 | 4.3 | 34.2 | 7.9 | 271 | 450±25% | 980±25% | 1200±25% | 2500±25% | 3000±25% |
| UF10.5 | 3.05 | 40 | 13 | 520 | 640±25% | 1400±25% | 1700±25% | 2500±25% | 3000±25% |
| UF1523 | 1.52 | 50.2 | 34.2 | 1719 | 1750±25% | ||||
| UF15.7 | 1.98 | 51.3 | 26 | 1330 | 2000±25% | 3000±25% | 3300±25% | 4500±25% | |
| UF1620 | 2.12 | 51.7 | 23.3 | 1202 | 1000±25% | 2000±25% | 2800±25% | 3600±25% | 4500±25% |
| UU1654 | 2.6 | 45 | 118 | 5334 | 1250±25% | ||||
| UF1936 | 2.29 | 81 | 35.3 | 2860 | 2400±25% | 3000±25% | 3700±25% | ||
| UF20.3 | 1.41 | 75.1 | 53.41 | 4055 | 930±25% | ||||
| UF2132 | 1.27 | 68.6 | 54 | 3700 | 1800±25% | ||||
| UF2532 | 2.09 | 83.7 | 40 | 3360 | 2600±25% | 3300±25% | 4100±25% | ||
| UU2758 | 2.14 | 64.8 | 138.8 | 9001 | 1140±25% | ||||
| UU3143 | 1.15 | 90.87 | 79.06 | 7184 | 2300±25% | ||||
| UU3138 | 1.31 | 109.2 | 83.1 | 9079 | 2300±25% | ||||
| UF3327 | 1.61 | 84.6 | 52.5 | 4440 | 4000±25% | 4500±25% | |||
| UU3935 | 1.34 | 112.6 | 83.47 | 9404 | 3500±25% | ||||
| UU46 | 0.46 | 183 | 397.7 | 72827 | 4600±25% | ||||
| UU100 | 0.25 | 234 | 910 | 213000 | 8600±30% | ||||
