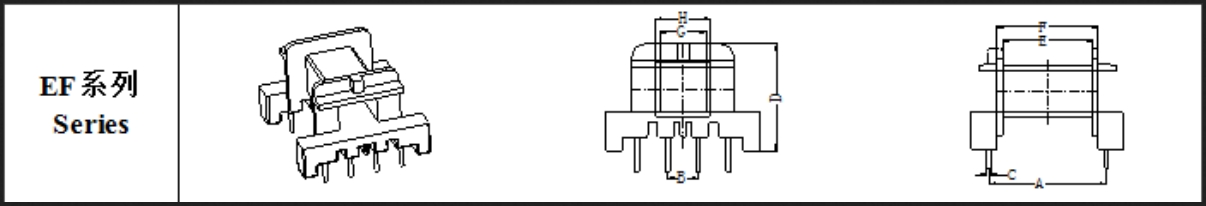

EF系列
序号型号品名ABC/ΦDEFGH完整尺寸NumberTypeModelnameB1B2G1G2H1H21EF-1201EF12（3+3P）-1S1050.59.27.28.5445.25.2点击查看2EF-1201-1EF12（3+3P）-2S1050.59.27.28.5445.25.2点击查看3EF-1202EF12（5+5P）-2S10.22.50.510.37.38.53.93.95.55.5点击查看4EF-1202-1EF12（5+5P）-1S10.22.50.510.37.38.53.
在线询价
| 序号 | 型 号 | 品 名 | A | B | C/Φ | D | E | F | G | H | 完整尺寸 | |||
| Number | Type | Model name | B1 | B2 | G1 | G2 | H1 | H2 | ||||||
| 1 | EF-1201 | EF12（3+3P）-1S | 10 | 5 | 0.5 | 9.2 | 7.2 | 8.5 | 4 | 4 | 5.2 | 5.2 | 点击查看 | |
| 2 | EF-1201-1 | EF12（3+3P）-2S | 10 | 5 | 0.5 | 9.2 | 7.2 | 8.5 | 4 | 4 | 5.2 | 5.2 | 点击查看 | |
| 3 | EF-1202 | EF12（5+5P）-2S | 10.2 | 2.5 | 0.5 | 10.3 | 7.3 | 8.5 | 3.9 | 3.9 | 5.5 | 5.5 | 点击查看 | |
| 4 | EF-1202-1 | EF12（5+5P）-1S | 10.2 | 2.5 | 0.5 | 10.3 | 7.3 | 8.5 | 3.9 | 3.9 | 5.5 | 5.5 | 点击查看 | |
| 5 | EF-1203 | EF12（5+5P）-1S | 15.4 | 3.5 | 0.6 | 9.4 | 7.6 | 8.8 | 3.9 | 3.9 | 5.1 | 5.1 | 点击查看 | |
| 6 | EF-1204 | EF12（3+3P）-1S | 7.6 | 3.8 | 0.5 | 15.7 | 7.5 | 8.7 | 4 | 4 | 5.1 | 5.1 | 点击查看 | |
| 7 | EF-1206 | EF12（3+5P）-1S | 14.4 | 2.9 | 5.5 | 0.7 | 12.3 | 7.9 | 10.1 | 4.3 | 5.2 | 5.6 | 6.5 | 点击查看 |
| 7-1 | EF-1501 | EF15(3+2+2P)-1S | 13.6 | 4.0 | 3.2/2.8 | 0.6 | 11.6 | 5.5 | 11.5 | 4.0 | 5.4 | 10.3 | 11.9 | 点击查看 |
| 8 | EF-1601 | EF16(4+4P)-1S | 14.5 | 3.5 | 0.6 | 11.7 | 9.4 | 11.2 | 4.9 | 5 | 6.5 | 6.5 | 点击查看 | |
| 9 | EF-1601-1 | EF16(4+4P)-1S | 14.5 | 3.5 | 0.6 | 11.7 | 9.4 | 11.2 | 4.9 | 5 | 6.5 | 6.5 | 点击查看 | |
| 10 | EF-1602 | EF16(3+3P)-1S | 7.5 | 3.75 | 0.64 | 18.3 | 10 | 11.3 | 4.9 | 4.9 | 6.1 | 6.2 | 点击查看 | |
| 11 | EF-1602-1 | EF16(3+3P)-2S | 7.5 | 3.75 | 0.64 | 18.3 | 10 | 11.3 | 4.9 | 4.9 | 6.1 | 6.2 | 点击查看 | |
| 12 | EF-1602-1B | EF16(3+3P)-2S | 7.5 | 3.75 | 0.5 | 18.3 | 10 | 11.3 | 4.9 | 4.9 | 6.1 | 6.2 | 点击查看 | |
| 13 | EF-1605 | EF16(3+3P)-2S | 8 | 4 | 0.8 | 14.1 | 8.6 | 9.9 | 4.5 | 5.45 | 5.5 | 6.45 | 点击查看 | |
| 14 | EF-1606 | EF16(3+3P)-2S | 7.5 | 3.8 | 0.8 | 17.3 | 10.1 | 11.4 | 4.9 | 4.9 | 6.1 | 6.1 | 点击查看 | |
| 15 | EF-1606-1 | EF16(3+3P)-1S | 7.5 | 3.8 | 0.8 | 17.3 | 10.1 | 11.4 | 4.9 | 4.9 | 6.1 | 6.1 | 点击查看 | |
| 16 | EF-1610 | EF16(4+4P)-1S | 17.8 | 3.81 | 5.08 | 0.6 | 13.5 | 10.2 | 11.3 | 4.9 | 5 | 6 | 6.2 | 点击查看 |
| 17 | EF-2001 | EF20(4+4P)-1S | 15 | 5 | 0.7 | 16 | 12.3 | 13.6 | 6 | 6 | 7.7 | 8.1 | 点击查看 | |
| 18 | EF-2001-1 | EF20(4+4P)-1S | 15 | 5 | 0.7 | 16 | 12.3 | 13.8 | 6 | 6 | 7.7 | 7.7 | 点击查看 | |
| 19 | EF-2002 | EF20(5+5P)-1S | 15.2 | 3.8 | 0.8 | 16.6 | 12.5 | 13.7 | 6.1 | 6.1 | 7.6 | 7.6 | 点击查看 | |
| 20 | EF-2003 | EF20(5+5P)-1S | 9.8 | 3.8 | 0.6 | 21.1 | 12.4 | 14 | 5.9 | 5.9 | 7.5 | 7.6 | 点击查看 | |
| 21 | EF-2004 | EF20(3+3P)-1S | 9.8 | 5.1 | 0.64 | 20.1 | 12.4 | 13.6 | 6.2 | 6.2 | 7.8 | 7.8 | 点击查看 | |
| 22 | EF-2006 | EF20(5+5P)-1S | 15.4 | 3.8 | 0.6 | 16.5 | 12.4 | 13.8 | 6.1 | 6.1 | 7.5 | 7.5 | 点击查看 | |
| 23 | EF-2008 | EF20(5+5P)-1S | 15.2 | 3.8 | 0.8 | 22.2 | 12.5 | 14 | 6.1 | 11.2 | 7.6 | 12.7 | 点击查看 | |
| 24 | EF-2009 | EF20(4+4P)-1S | 15 | 5 | 0.64 | 13.9 | 12.7 | 14 | 6.1 | 6.1 | 7.5 | 7.5 | 点击查看 | |
| 25 | EF-2009-1 | EF20(4+4P)-2S | 15.5 | 5 | 0.64 | 13.9 | 12.7 | 14 | 6.1 | 6.1 | 7.5 | 7.5 | 点击查看 | |
| 26 | EF-2009-2 | EF20(4+4P)-2S | 15.5 | 5 | 0.64 | 13.9 | 12.7 | 14 | 6.1 | 6.1 | 7.5 | 7.5 | 点击查看 | |
| 27 | EF-2009-3 | EF20(4+4P)-2S | 15.5 | 5 | 0.5 | 13.9 | 12.7 | 14 | 6.1 | 6.1 | 7.5 | 7.5 | 点击查看 | |
| 28 | EF-2009-4 | EF20(4+4P)-2S | 15.5 | 5 | 0.6 | 13.9 | 12.7 | 14 | 6.1 | 6.1 | 7.5 | 7.5 | 点击查看 | |
| 29 | EF-2013 | EF20(3+3P)-1S | 12 | 5 | 0.8 | 17.3 | 12.2 | 13.8 | 6.1 | 6.1 | 7.7 | 7.8 | 点击查看 | |
| 30 | EF-2014 | EF20(4+4P)-1S | 15 | 5 | 0.8 | 15.7 | 12.4 | 13.9 | 6 | 6 | 7.6 | 7.7 | 点击查看 | |
| 31 | EF-2501 | EF25(4+4P)-1S | 20 | 5 | 0.8 | 18.7 | 15.3 | 17.4 | 7.6 | 7.6 | 9.2 | 9.4 | 点击查看 | |
| 32 | EF-2501-1 | EF25(4+4P)-1S | 20 | 5 | 0.8 | 18.7 | 15.3 | 17.4 | 7.6 | 7.6 | 9.2 | 9.4 | 点击查看 | |
| 33 | EF-2501-2 | EF25(4+4P)-1S | 20 | 5 | 0.8 | 18.7 | 15.3 | 17.4 | 7.6 | 7.6 | 9.2 | 9.4 | 点击查看 | |
| 34 | EF-2503 | EF25(7+7P)-1S | 20.5 | 5 | 3 | 0.8 | 18.9 | 15.1 | 17.1 | 7.7 | 7.7 | 9.3 | 9.3 | 点击查看 |
| 35 | EF-2504 | EF25(5+5P)-1S | 20 | 5 | 0.8 | 21 | 15.3 | 17.3 | 7.8 | 7.8 | 9.5 | 9.5 | 点击查看 | |
| 36 | EF-2504-1 | EF25(5+5P)-1S | 21 | 5 | 0.8 | 21.8 | 15.5 | 17.4 | 7.8 | 7.8 | 9.2 | 9.3 | 点击查看 | |
| 37 | EF-2504-2 | EF25(5+5P)-1S | 20 | 5 | 0.8 | 21 | 15.3 | 17.3 | 7.8 | 7.8 | 9.5 | 9.5 | 点击查看 | |
| 38 | EF-2510 | EF25(5+5P)-1S | 20 | 5 | 0.64 | 18.9 | 15.9 | 17.3 | 7.8 | 9.3 | 9.3 | 10.8 | 点击查看 | |
| 39 | EF-2513 | EF25(5+5P)-1S | 20.3 | 5 | 0.8 | 21.8 | 15.4 | 17.7 | 7.6 | 7.7 | 9.3 | 9.5 | 点击查看 | |
| 40 | EF-2515 | EF25(7+7P)-1S | 20.5 | 5 | 3 | 0.8 | 19.9 | 15.1 | 17 | 7.6 | 7.5 | 9.3 | 9.3 | 点击查看 |
| 41 | EF-2523 | EF25(6+6P)-1S | 26.1 | 3.7 | 4 | 0.7 | 21.8 | 15.5 | 17.2 | 7.7 | 7.8 | 9.05 | 9.6 | 点击查看 |
| 42 | EF-2816 | EF28(5+5P)-1S | 16 | 5 | 0.6 | 17.9 | 9.8 | 11.2 | 7.9 | 11.2 | 9.2 | 12.6 | 点击查看 | |
| 43 | EF-3508 | EF35(7+7P)-1S | 29.1 | 4.5 | 0.64 | 22.3 | 22.6 | 24.5 | 10.3 | 10.3 | 11.9 | 11.8 | 点击查看 | |
