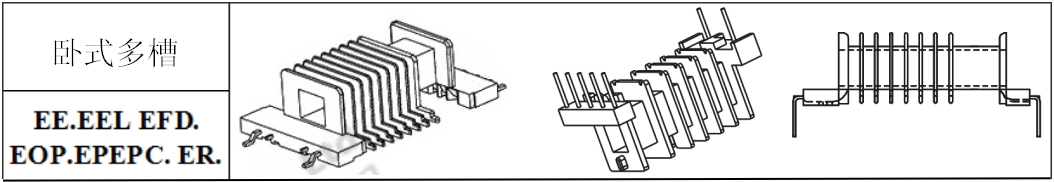

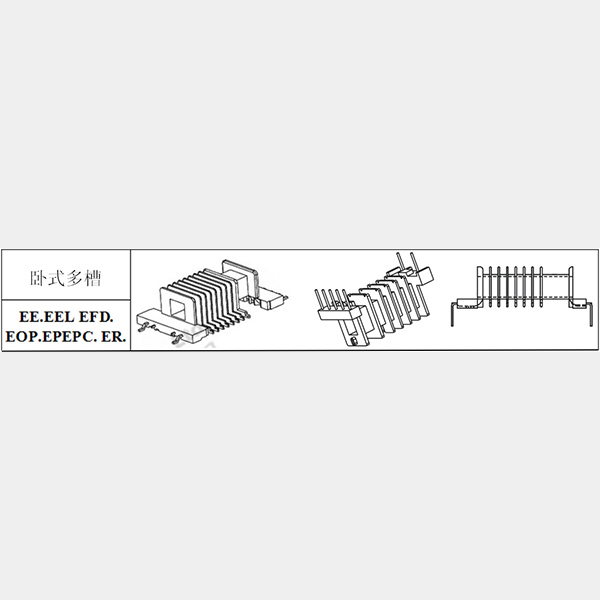

卧式多槽（升压）系列
飞灏骨架类产品目录索引FeiHao CatalogueIndex序号类别型号品名排距针距引脚长宽高完整尺寸NumberCategoryTypeModelnameB1B2直径/宽度1EIEEEL类EE1601EE-16（6+6P）-4S12.52.5φ0.615.61511.6点击查看2EE1601-1EE-16（6+6P）-4S12.52.5φ0.616.215.213.5点击查看3EL1620EL-1620（
在线询价 飞灏骨架类产品目录索引
FeiHao Catalogue Index
| 序号 | 类别 | 型 号 | 品 名 | 排距 | 针距 | 引脚 | 长 | 宽 | 高 | 完整尺寸 | |
| Number | Category | Type | Model name | B1 | B2 | 直径/宽度 | |||||
| 1 | EI EE EL类 | EE1601 | EE-16（6+6P）-4S | 12.5 | 2.5 | φ0.6 | 15.6 | 15 | 11.6 | 点击查看 | |
| 2 | EE1601-1 | EE-16（6+6P）-4S | 12.5 | 2.5 | φ0.6 | 16.2 | 15.2 | 13.5 | 点击查看 | ||
| 3 | EL1620 | EL-1620（2+6P）-5S | 17 | 2.5 | φ0.5 | 20 | 16 | 13 | 点击查看 | ||
| 4 | EL1625 | EL-1625（2+5P）-6S | 23 | 3 | 4 | φ0.5 | 26 | 16 | 12 | 点击查看 | |
| 5 | EL1625-1 | EL-1625（3+3+2P）-6S | 5/15.5 | 6.8 | 13.6 | φ0.6 | 23.5 | 16 | 13 | 点击查看 | |
| 5 | EL1625-2 | EL-1625（5+3+2P）-7S | 5/15.0 | 3.5 | 14 | φ0.6 | 23.9 | 16 | 14.5 | 点击查看 | |
| 7 | EI19 | EI-19(5+2P)-4S | 13 | 3.5 | 14 | φ0.6 | 16 | 18 | 15 | 点击查看 | |
| 8 | EI19-1 | EI-19(5+2P)-5S | 13 | 3.5 | 14 | φ0.6 | 16 | 18 | 15 | 点击查看 | |
| 9 | EE1901 | EE-19（6+4P）-4S | 14.2 | 2.5 | 0.8 | 20.6 | 19 | 11.1 | 点击查看 | ||
| 10 | EE1911-1 | EE-19（2+5P）-5S | 13 | 3.5 | φ0.8 | 18.2 | 19.8 | 16.8 | 点击查看 | ||
| 11 | EE1911 | EE-19（2+5P）-5S | 13 | 3.5 | φ0.8 | 15.5 | 18 | 15.9 | 点击查看 | ||
| 12 | EL19-1 | EL19（3+2P）-7S | 22.6 | 6.25 | 10 | φ0.8/0.4 | 26 | 19 | 16.5 | 点击查看 | |
| 13 | EL19-2 | EL19（3+2P）-7S | 22.6 | 6.25 | 10 | φ0.8 | 26 | 19 | 16.5 | 点击查看 | |
| 14 | EE196S | EE19（4+6P）-6S | 16.8 | 2.5 | 0.4*0.8 | 17.3 | 19 | 12 | 点击查看 | ||
| 15 | EE22-1 | EE22(6+6P)-4S | 13.5 | 3.8 | φ0.6 | 15.5 | 22 | 15.5 | 点击查看 | ||
| 16 | EL22-1 | EL22(6+4P)-6S | 23.5 | 3 | 9 | φ0.6 | 24.3 | 21 | 15.5 | 点击查看 | |
| 17 | EL25-1 | EL25-(6+4P)-7S | 28 | 4.1 | φ0.6 | 30 | 25 | 16 | 点击查看 | ||
| 18 | SMD-EE-1250 | EE12.5（2+4P）-7S | 22.6 | 2.5 | 7.5 | 0.4*0.6 | 25.8 | 12.4 | 7.8 | 点击查看 | |
| 19 | SMD-EE-1908 | EE19（4+6P）-4S | 14.2 | 2.5 | 0.4*0.6 | 17.4 | 19 | 11.2 | 点击查看 | ||
| 20 | SMD-EEL-1914 | EL19（8+4P）-9S | 36 | 2.5 | 7 | 0.4*0.6 | 29.8 | 19.5 | 9 | 点击查看 | |
| 21 | SMD-EEL-1914-2 | EEL-1914 外壳 | 点击查看 | ||||||||
| 22 | EF 类 | EF-2010-2 | EF20（3+3P）-4S | 16 | 5 | φ0.64 | 20 | 19.2 | 20.5 | 点击查看 | |
| 23 | EF-2012-2 | EF20（4+4P）-4S | 15 | 5 | φ0.64 | 19.8 | 21.2 | 18.6 | 点击查看 | ||
| 24 | EF-2506 | EF25（4+4P）-4S | 20 | 5 | φ0.64 | 22.6 | 25.7 | 20.5 | 点击查看 | ||
| 25 | EF-2508-2 | EF25（4+4P）-4S | 20 | 5 | φ0.64 | 25.4 | 22.5 | 21.4 | 点击查看 | ||
| 26 | EF-2509-1 | EF25（5+5P）-3S | 20 | 5 | φ0.64 | 26 | 25 | 22.5 | 点击查看 | ||
| 27 | EFD 类 | EFD1502-1 | EFD15（5+5P）-4S | 17.8 | 2.5 | 0.7 | 14.95 | 15 | 7.45 | 点击查看 | |
| 28 | EFD1502-2 | EFD15（5+5P）-4S | 17.8 | 2.5 | 0.7 | 14.95 | 15 | 7.45 | 点击查看 | ||
| 29 | SMD-EFD-1502 | EFD15（5+5P）-4S | 21.9 | 2.5 | 0.4*0.7 | 15 | 14.9 | 7.5 | 点击查看 | ||
| 30 | EFD2001 | EFD20（2+7P）-8S | 27.9 | 2.5 | 0.3*0.6 | 24.1 | 18.8 | 7.45 | 点击查看 | ||
| 31 | EFD2001-1 | EFD20（2+7P）-8S | 26.3 | 2.5 | 0.3*0.6 | 24.1 | 18.8 | 7.45 | 点击查看 | ||
| 31 | EPC 类 | EPC1301 | EPC13（5+5P）-4S | 10.5 | 2.5 | φ0.5 | 13.3 | 13.3 | 7.8 | 点击查看 | |
| 32 | SMD-EPC-1902 | EPC19（4+6P）-4S | 24 | 2.5 | 0.4*0.6 | 19 | 19 | 9.6 | 点击查看 | ||
| 33 | EPC1903 | EPC19（4+6P）-6S | 24.1 | 2.5 | 0.4*0.6 | 19 | 19 | 9.4 | 点击查看 | ||
| 34 | EPC1903-1 | EPC19（4+6P）-6S | 21.6 | 2.5 | 0.4*0.6 | 19 | 19 | 9.4 | 点击查看 | ||
| 35 | EPC1903-2 | EPC19（4+6P）-6S | 24 | 2.5 | 0.4*0.6 | 19 | 19 | 9.6 | 点击查看 | ||
| 36 | SMD-EPC-1903-1 | EPC19（4+6P）-6S | 21.3 | 2.5 | 0.4*0.6 | 18.9 | 19 | 9.5 | 点击查看 | ||
| 37 | SMD-EPC-2501 | EPC25（6+6P）-5S | 27.5 | 3.75 | 0.4*0.6 | 25.1 | 24.9 | 11.4 | 点击查看 | ||
