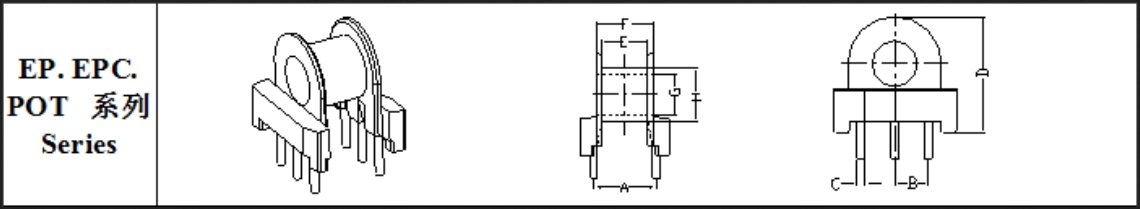

EP EPC POT系列
序号型号品名ABC/ΦDEFGH完整尺寸NumberTypeModelnameB1B2G1G2H1H21EP-0701EP7(3+3P)-1S5.152.5φ0.68.93.95φ3.4Φ4.5点击查看2EP-0702EP7(3+3P)-2S5.152.5φ0.68.93.95φ3.4φ4.5点击查看3EP-0701-2EP7(3+3P)-2S5.152.5φ0.68.93.95φ3.4φ4.5点击查看4EP-0701-1EP7(3+3P)-2S5.152.5φ0.68.93.95φ3.4φ
在线询价
| 序号 | 型 号 | 品 名 | A | B | C/Φ | D | E | F | G | H | 完整尺寸 | |||
| Number | Type | Model name | B1 | B2 | G1 | G2 | H1 | H2 | ||||||
| 1 | EP-0701 | EP7(3+3P)-1S | 5.15 | 2.5 | φ0.6 | 8.9 | 3.9 | 5 | φ3.4 | Φ4.5 | 点击查看 | |||
| 2 | EP-0702 | EP7(3+3P)-2S | 5.15 | 2.5 | φ0.6 | 8.9 | 3.9 | 5 | φ3.4 | φ4.5 | 点击查看 | |||
| 3 | EP-0701-2 | EP7(3+3P)-2S | 5.15 | 2.5 | φ0.6 | 8.9 | 3.9 | 5 | φ3.4 | φ4.5 | 点击查看 | |||
| 4 | EP-0701-1 | EP7(3+3P)-2S | 5.15 | 2.5 | φ0.6 | 8.9 | 3.9 | 5 | φ3.4 | φ4.5 | 点击查看 | |||
| 5 | EP-0702-2 | EP7(3+3P)-2S | 5.15 | 2.5 | φ0.5 | 8.9 | 3.9 | 5 | φ3.4 | φ4.5 | 点击查看 | |||
| 6 | EP-0701-3 | EP7(3+3P)-2S | 5.15 | 2.5 | φ0.6 | 8.9 | 3.9 | 4.9 | φ3.4 | φ4.5 | 点击查看 | |||
| 7 | EP-1001 | EP10(4+4P)-1S | 7.5 | 2.5 | φ0.6 | 9.8 | 5.6 | 7 | φ3.6 | φ4.8 | 点击查看 | |||
| 8 | EP-1001-1 | EP10(4+4P)-2S | 7.5 | 2.5 | φ0.6 | 9.8 | 5.6 | 7 | φ3.6 | φ4.8 | 点击查看 | |||
| 9 | EP-1301 | EP13(5+5P)-1S | 10 | 2.5 | φ0.6 | 10.7 | 7.8 | 8.9 | φ4.5 | φ5.7 | 点击查看 | |||
| 10 | EP-1301-1 | EP13(5+5P)-2S | 10 | 2.5 | φ0.6 | 10.7 | 7.8 | 8.9 | φ4.5 | φ5.7 | 点击查看 | |||
| 11 | EP-1303 | EP13(8+8P)-1S | 13.2 | 1.7 | φ0.5 | 10.5 | 7.8 | 9.1 | φ4.6 | φ5.6 | 点击查看 | |||
| 12 | EP-1305 | EP13(5+5P)-1S | 13 | 2.5 | φ0.5 | 10.3 | 7.6 | 8.9 | φ4.6 | φ5.6 | 点击查看 | |||
| 13 | EP-1306 | EP13(8+8P)-1S | 13 | 1.7 | φ0.5 | 10.3 | 7.6 | 8.9 | φ4.6 | φ5.6 | 点击查看 | |||
| 14 | POT-1401 | POT14(2+2P)-1S | 16 | 3.6 | φ0.5 | 6.8 | 4.3 | 5.7 | φ6.0 | φ7.1 | 点击查看 | |||
| 15 | POT-2816 | POT28(5+5P)-1S | 24.6 | 5 | φ0.8 | 15.4 | 8.05 | 10.45 | φ11.5 | φ12.65 | 点击查看 | |||
| 16 | POT-3002 | POT30(5+5P)-1S | 29.5 | 5 | φ0.8 | 17.7 | 10.9 | 12.6 | φ13.6 | φ14.9 | 点击查看 | |||
| 17 | POT-3003 | POT30(6+6P)-1S | 30.4 | 5 | φ0.8 | 19.1 | 10.4 | 12.8 | φ13.65 | φ15.0 | 点击查看 | |||
| 18 | POT-3319 | POT33(5+5P)-1S | 33.5 | 5 | φ0.8 | 18.6 | 10.7 | 12.4 | φ14 | φ15.5 | 点击查看 | |||
| 19 | POT-4004 | POT40(5+5P)-1S | 38.5 | 5 | φ0.8 | 18.7 | 10.5 | 12.4 | φ16.5 | φ18.4 | 点击查看 | |||
| 20 | POT-4008 | POT40(4+6P)-1S | 41.6 | 5 | φ0.8 | 24.2 | 15.2 | 17.5 | φ16.5 | φ18.2 | 点击查看 | |||
| 21 | POT-4010 | POT40(5P)-1S | 19.45 | 5 | φ0.8 | 19.8 | 10 | 12.3 | φ19.4 | φ21.6 | 点击查看 | |||
| 22 | EPC-1301 | EPC13(5+5P)-1S | 10.5 | 2.5 | φ0.5 | 7.5 | 6.9 | 8.5 | 5.9 | 2.5 | 6.9 | 3.5 | 点击查看 | |
| 23 | EPC-1327 | EPC13(5+5P)-1S | 10.5 | 2.5 | φ0.5 | 7.8 | 7.2 | 8.6 | 5.9 | 2.4 | 6.9 | 3.4 | 点击查看 | |
| 24 | EPC-1702 | EPC17(4+6P)-1S | 15 | 3.8 | 2.5 | φ0.6 | 12 | 9.7 | 11.6 | 8.25 | 3.3 | 9.85 | 4.9 | 点击查看 |
| 25 | EPC-1703 | EPC17(5P)-1S | 3.5 | φ0.6 | 10.2 | 10.3 | 11.8 | 8 | 3.1 | 9 | 4.3 | 点击查看 | ||
| 26 | EPC-1718 | EPC17(5+2P)-1S | 18.5 | 3 | 11.45 | φ0.8 | 10.7 | 8 | 10.35 | 8 | 3.9 | 9.4 | 5.4 | 点击查看 |
| φ0.64 | ||||||||||||||
| 27 | EPC-1719 | EPC17(5+2P)-1S | 18.5 | 3 | 11.45 | φ0.8 | 10.7 | 8 | 10.35 | 7.9 | 3.85 | 9.4 | 5.4 | 点击查看 |
| φ0.64 | ||||||||||||||
| 28 | EPC-1901 | EPC19(5+6P)-1S | 16.4 | 2.8 | 3.8 | φ0.6 | 12.1 | 12 | 14 | 9 | 3.2 | 10.7 | 4.8 | 点击查看 |
| 29 | EPC-1925 | EPC19(5+6P)-1S | 3.2 | φ0.8 | 11.8 | 9.5 | 11.7 | 9.1 | 4 | 10.7 | 5.9 | 点击查看 | ||
| 30 | EPC-2701 | EPC27(5+6P)-1S | 42 | 5 | 3.75 | φ1.0 | 14 | 20.8 | 23.2 | 13.5 | 4.5 | 15.5 | 6.5 | 点击查看 |
| 31 | EPC-4643 | EPC46(8+9P)-1S | 37.5 | 4.5 | 5 | φ0.8 | 29.7 | 33.2 | 36.3 | 21.2 | 12.3 | 23.4 | 14.5 | 点击查看 |
