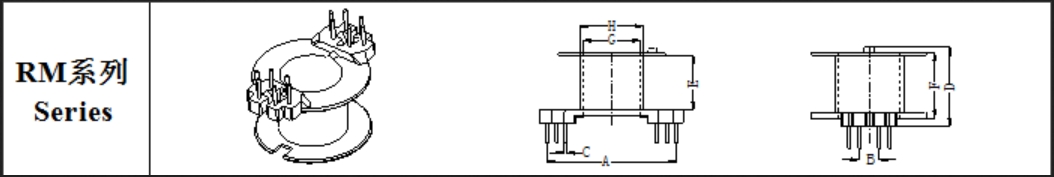

RM LM 系列
飞灏骨架类产品目录索引FeiHao CatalogueIndex序号型号品名AB完整尺寸NumberTypeModelnameA1A2A3B1B2B3B4C/ΦDEFGΦH1LM-0605LM6-5P-1S103.60.6136.17.810.611.6点击查看7.68.62LM-0806LM-5P-1S12101170.6158.41013.414.4点击查看9.410.43RM-0401RM4（3+3P）-1S117.23.60.58.15.86.9Φ4.1Φ4.9点击
在线询价 飞灏骨架类产品目录索引
FeiHao Catalogue Index
| 序号 | 型 号 | 品 名 | A | B | 完整尺寸 | |||||||||||
| Number | Type | Model name | A1 | A2 | A3 | B1 | B2 | B3 | B4 | C/Φ | D | E | F | GΦ | H | |
| 1 | LM-0605 | LM6-5P-1S | 10 | 3.6 | 0.6 | 13 | 6.1 | 7.8 | 10.6 | 11.6 | 点击查看 | |||||
| 7.6 | 8.6 | |||||||||||||||
| 2 | LM-0806 | LM-5P-1S | 12 | 10 | 11 | 7 | 0.6 | 15 | 8.4 | 10 | 13.4 | 14.4 | 点击查看 | |||
| 9.4 | 10.4 | |||||||||||||||
| 3 | RM-0401 | RM4（3+3P）-1S | 11 | 7.2 | 3.6 | 0.5 | 8.1 | 5.8 | 6.9 | Φ4.1 | Φ4.9 | 点击查看 | ||||
| 4 | RM-0401-1 | RM4（3+3P）-2S | 11 | 7.2 | 3.6 | 0.5 | 8.1 | 5.8 | 6.9 | Φ4.1 | Φ4.9 | 点击查看 | ||||
| 5 | RM-0501 | RM5（3+3P）-1S | 14 | 11 | 3.6 | 0.5 | 8.3 | 4.9 | 6.3 | Φ5 | Φ6.1 | 点击查看 | ||||
| 6 | RM-0601-2 | RM6（3+3P）-1S | 15 | 3.6 | 0.6 | 8.8 | 6.6 | 8.1 | Φ6.5 | Φ7.5 | 点击查看 | |||||
| 7 | RM-0602 | RM6（4+4P）-1S | 11 | 14 | 18 | 3.6 | 0.5 | 9 | 6.5 | 7.9 | Φ6.5 | Φ7.5 | 点击查看 | |||
| 8 | RM-0602-1 | RM6（4+4P）-2S | 11 | 14 | 18 | 3.6 | 0.5 | 9 | 6.5 | 7.9 | Φ6.5 | Φ7.5 | 点击查看 | |||
| 9 | RM-0602B | RM6（4+4P）-1S | 11 | 14 | 18 | 3.6 | 0.5 | 10 | 6.5 | 7.9 | Φ6.5 | Φ7.5 | 点击查看 | |||
| 10 | RM-0603 | RM6（4+4P）-2S | 20 | 3.8 | 0.4 | 10 | 4.6 | 5.9 | Φ6.5 | Φ7.4 | 点击查看 | |||||
| 11 | RM-0801 | RM8（6+6P）-1S | 22 | 18 | 14 | 3.6 | 7.2 | 0.6 | 13 | 9.3 | 11 | Φ8.7 | Φ9.9 | 点击查看 | ||
| 12 | RM-0801-1 | RM8（6+6P）-2S | 18 | 14 | 22 | 3.6 | 7.2 | 0.6 | 12 | 9.4 | 11 | Φ8.7 | Φ9.9 | 点击查看 | ||
| 13 | RM-0802 | RM8（2+4P）-1S | 18 | 14 | 16 | 3.5 | 5.3 | 0.6 | 14 | 9.3 | 11 | Φ8.7 | Φ9.9 | 点击查看 | ||
| 14 | RM-0803 | RM8（5P）-1S | 11 | 9.6 | 6.9 | 2.7 | 2 | 1.6 | 2.9 | 0.6 | 14 | 9 | 11 | Φ8.8 | Φ9.8 | 点击查看 |
| 15 | RM-0804 | RM8（6P）-1S | 9 | 7.2 | 3.6 | 3.6 | 0.6 | 14 | 9.2 | 11 | Φ8.7 | Φ9.75 | 点击查看 | |||
| 16 | RM-0810 | RM8护套-3P | 0.7 | 18 | 点击查看 | |||||||||||
| 17 | RM-1001 | RM10（6+6P）-1S | 22 | 18 | 25 | 3.6 | 7.2 | 0.6 | 14 | 11 | 12 | Φ11.2 | Φ12.5 | 点击查看 | ||
| 18 | RM-1001-1 | RM10（6+6P）-2S | 22 | 18 | 25 | 3.6 | 7.2 | 0.6 | 14 | 11 | 12 | Φ11.2 | Φ12.5 | 点击查看 | ||
| 19 | RM-1002 | RM10（6+6P）-1S | 18 | 22 | 25 | 7.2 | 3.6 | 0.6 | 18 | 11 | 12 | Φ11.0 | Φ12.2 | 点击查看 | ||
| 20 | RM-1003 | RM10-6P-1S | 3.6 | 7.2 | 3.6 | 0.6 | 15 | 11 | 12 | Φ11.1 | Φ12.5 | 点击查看 | ||||
| 21 | RM-1004 | RM10-4P-1S | 3.5 | 0.8 | 16 | 10 | 12 | Φ11.1 | Φ12.8 | 点击查看 | ||||||
| 22 | RM-1006 | RM10（6+6P）-1S | 18 | 22 | 25 | 3.6 | 7.2 | 0.6 | 18 | 11 | 12 | Φ11.0 | Φ12.2 | 点击查看 | ||
| 23 | RM-1201 | RM12（6+6P）-1S | 22 | 29 | 36 | 3.6 | 11 | 0.8 | 18 | 15 | 17 | Φ13.0 | Φ14.3 | 点击查看 | ||
| 24 | RM-1201-1 | RM12（6+6P）-2S | 22 | 29 | 36 | 3.6 | 11 | 0.8 | 18 | 15 | 17 | Φ13.0 | Φ14.3 | 点击查看 | ||
| 25 | RM-1401 | RM14（6+6P）-1S | 25 | 32 | 40 | 14 | 7.2 | 0.8 | 22 | 19 | 21 | Φ15.2 | Φ16.8 | 点击查看 | ||
